Leírás és Paraméterek

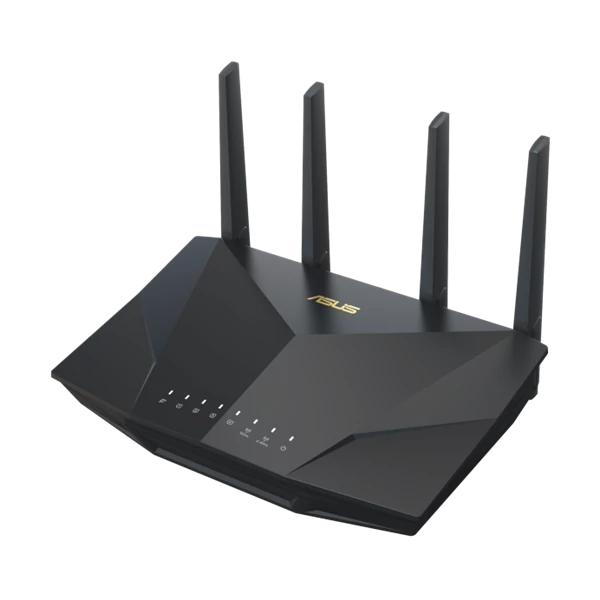

Model
RT-AX5400
Network Standard
IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
WiFi 4 (802.11n)
WiFi 5 (802.11ac)
WiFi 6 (802.11ax)
Product Segment
AX5400 ultimate AX performance : 574+4804 Mbps
WiFi Data Rate
802.11a : up to 54 Mbps
802.11b : up to 11 Mbps
802.11g : up to 54 Mbps
WiFi 4 (802.11n) : up to 300 Mbps
WiFi 5 (802.11ac) : up to 400 Mbps
WiFi 5 (802.11ac) (1024QAM) : up to 3466 Mbps
WiFi 6 (802.11ax) (2.4GHz) : up to 574 Mbps
WiFi 6 (802.11ax) (5GHz) : up to 4804 Mbps
Antenna
External antenna x 4 (non-detachable)
Processor
1.5 GHz tri-core processor
Memory
256 MB Flash
512 MB RAM
Boosts Speed
OFDMA (Orthogonal Frequency Division Multiple Access)
Beamforming: standard-based and universal
1024-QAM high data rate
20/40/80/160 MHz bandwidth
Operating Frequency
2.4G Hz / 5 GHz
Operating Mode
Wireless router mode
Access point mode
Media bridge mode
Repeater mode
AiMesh node mode
I/O Ports
RJ45 for Gigabits BaseT for WAN x 1, RJ45 for Gigabits BaseT for LAN x 4
USB 3.2 Gen 1 x 1
Buttons
WPS Button, Reset Button, Power Switch
LED Indicator
Power x 1
2.4G x 1
5G x 1
LAN x 4
WAN x 1
Power Supply
AC Input : 110V~240V(50~60Hz)
DC Output : 19 V with max. 1.75 A current
Package Content
RT-AX5400 WiFi router
RJ-45 cable
Power adapter
Quick Start Guide
Warranty card
Product Weight (g)
612.4g
Product Dimensions
161.05*226.23*160.23mm
AiMesh
AiMesh
• Primary AiMesh Router
• AiMesh Node
Parental Control
"Allow you to block access to unwanted websites and apps."
Safe Browsing
Customized Internet Schedule
Guest Network
"The Guest Network provides Internet connection for guests but restricts access to your local network."
• Maximum Guest Network Rule : 2.4GHz x3, 5GHz x3
Guest Network Connection Time Limit
Guest Network Encryption : Open system, WPA/WPA2/WPA3-Personal, WPS
Security
AiProtection
WPA3-Personal, WPA2-Personal, WPA-Personal, WPA-Enterprise , WPA2-Enterprise , WPS support
WPS
Let's Encrypt
DNS-over-TLS
SSH
Security Scan
Firewall
• Maximum Firewall Keyword Filter : 64
• Maximum Firewall Network Service Filter : 32
• Maximum Firewall URL Filter : 64
AiProtection
• Router Security Assessment
• Malicious Site Blocking
• Two-Way IPS
• Infected Device Prevention and Blocking
VPN
Instant Guard
VPN Client L2TP
VPN Client Open VPN
VPN Client PPTP
VPN Client WireGuard
VPN Server IPSec
VPN Server Open VPN
VPN Server PPTP
VPN Server WireGuard
VPN Fusion
Traffic Control
Adaptive QoS
• Bandwidth Monitor
• Bandwidth Limiter
-- Maximum Bandwidth Limiter Rule : 32
Traditional QoS
-- Maximum Traditional QoS Rule : 32
Traffic Monitor
• Real-time Traffic Monitor
• Wired Traffic Monitor
• Wireless Traffic Monitor
Traffic Analyzer
• Traffic Analysis Period : Daily, Weekly, Monthly
• Website History
WAN
Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP
Dual WAN
WAN Aggregation
3G / 4G LTE dongle
Port forwarding
• Maximum Port Forwarding Rule : 64
Port triggering
• Maximum Port Triggering Rule : 32
DMZ
DDNS
NAT Passthrough : PPTP, L2TP, IPSec, RTSP, H.323, SIP Passthrough,PPPoE relay
LAN
DHCP Server
IGMP Snooping
IPTV
LAN Link Aggregation
Manually Assign IP Address
• Maximum Manually Assign IP Address Rule : 64
Wake on LAN (WOL)
Wireless
MU-MIMO
UTF-8 SSID
WiFi MAC Address Filter
• Maximum MAC Filters : 64
Wireless Scheduler
Airtime Fairness
RADIUS Client
Universal Beamforming
Explicit Beamforming
USB application
File System : HFS+, NTFS, vFAT, ext2, ext3, ext4
Safely Remove Disk
AiCloud
Download Master
AiDisk
Media Server
Time Machine
Samba Server
FTP Server
Shared Folder Privileges
Administration
Configuration Backup and Restore
Diagnosis tools
Feedback System
System Log
New Device Connect Notification
Login Captcha
Connection Diagnosis
Auto Firmware Update
