Leírás és Paraméterek
- 5x Gigabit Ethernet ports (4x PoE+ ports)
- PoE+, 60W power budget
- 10 Gbps switching fabric capacity
- Plug & Play simplicity for easy installation
General
Hardware version = A1
Size
• Desktop
Interfaces
• 5 10/100/1000BASE-T ports
Standards
• IEEE 802.3 10BASE-T Ethernet (twisted-pair copper)
• IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper)
• IEEE 802.3ab 1000BASE-T Gigabit Ethernet
• IEEE 802.3x flow control
• IEEE 802.1p QoS
• ANSI/IEEE 802.3 NWay auto-negotiation
Media Interface Exchange
• Auto MDI/MDI-X adjustment on all ports
Performance
Switching Fabric
• 10 Gbps
Transmission Method
• Store-and-forward
Data Transfer Rates
• Gigabit Ethernet
• 2000 Mbps (full-duplex)
• Fast Ethernet
• 100 Mbps (half-duplex)
• 200 Mbps (full-duplex)
• Ethernet
• 10 Mbps (half-duplex)
• 20 Mbps (full-duplex)
Packet Filtering / Forwarding Rates
• 7.44 Mpps
MAC Address Table
• 2K entries per device
RAM Buffer
• 64 KB per device
PoE
PoE Standards
• IEEE 802.3af
• IEEE 802.3at
PoE-Capable Ports
• Ports 1 to 4
Power Budget
• 60 W (30 W max. per PoE port)
LEDs
• Power
• Power / PoE Max (per unit)
• Power / Status (per port)
• Activity / Link and Speed (per port)
Physical
Weight
• 0.26 kg (9.17 oz)
Dimensions
• 100 x 98 x 28 mm (3.94 x 3.86 x 1.10 in)
DC Input
• External 53.5 V / 1.2 A power adapter
Power Consumption
• 64.5 W maximum (PoE on)
• 3.08 W maximum (PoE off)
• 0.54 W (standby)
Temperature
• Operating: 0 to 40 °C (32 to 104 °F)
• Storage: -10 to 70 °C (-40 to 158 °F)
Humidity
• Operating: 0% to 95% RH non-condensing
• Storage: 0% to 95% RH non-condensing
Certifications
Safety
• cUL
• CB
• LVD
• BSMI
EMI/EMC
• CE
• BSMI
• FCC
• VCCI
• RCM
Ordering Information

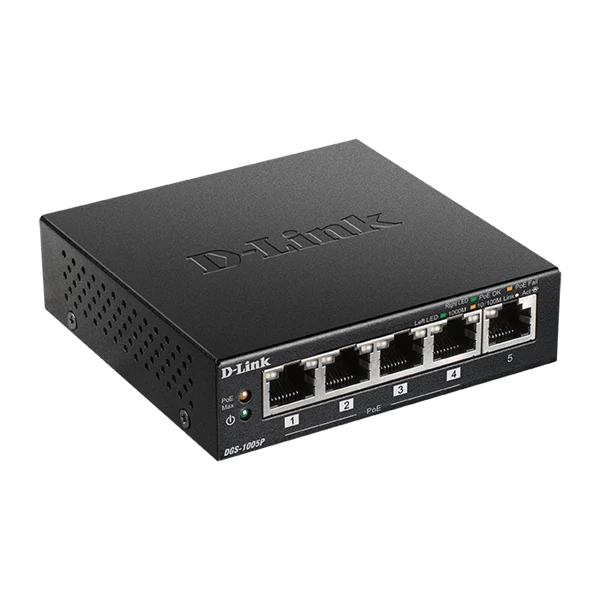

DGS-1005P 5-Port Gigabit Switch with 4 PoE Ports
