Technical Specifications:

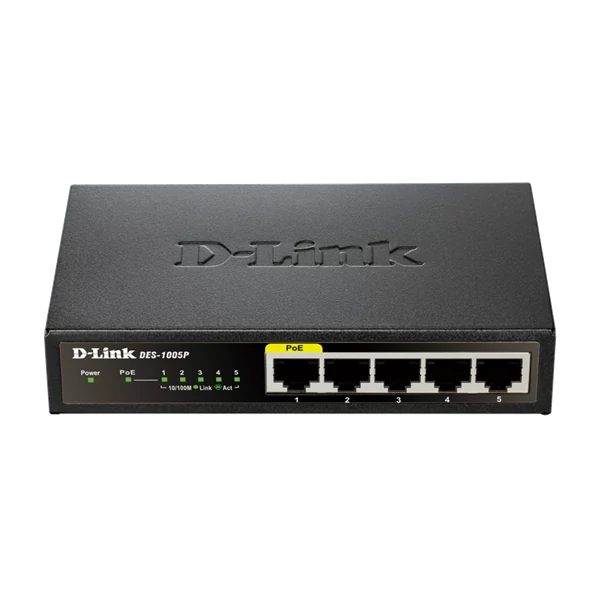

| D-Link DES-1005P Specifications | |
|---|---|
| General | |
| Number of Ports | Five 10/100 Mbps Ports including one PoE enabled |
| Switching Capacity | 1Gbps |
| Standards | IEEE 802.3 10BASE-T Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet ANSI/IEEE 802.3 NWay auto-negotiation IEEE 802.3x Flow Control IEEE 802.1p QoS |
| PoE Features | Supports IEEE 802.3af Supplies up to 15.4 watts of power to PD |
| Data Transfer Rates | Ethernet:
|
| Network Cables | 10BASE-T:
|
| Media Interface Exchange | Auto MDI/MDIX adjustment for all ports |
| LED Indicators | Per port: Link/Activity/Speed/PoE Status Per device: Power/PoE Max |
| Transmission Method | Store-and-forward |
| MAC Address Table | 2k Entries per device |
| MAC Address Learning | Automatic update |
| Packet Filtering/Forwarding Rates | Ethernet: 14,880 pps per port Fast Ethernet: 148,800 pps per port |
| RAM Buffer | 64 KBytes per device |
| D-Link Green | IEEE 802.3az Energy Efficient Ethernet (EEE) Link status detection power saving Cable length detection power saving |
| Physical | |
| Power Inputs | Switching 48 V/0.5 A Level V power adapter |
| Power Consumption | Power On (Standby): DC input: 0.9 watt AC input: 1.8 watts Maximum (PoE Off): DC input: 2.05 watts AC input: 2.7 watts Maximum (PoE On): DC input: 17.29 watts AC input: 20.2 watts |
| MTBF | 324,616 hours |
| Operating Temperature | 32 to 104 °F (0 to 40 °C) |
| Storage Temperature | 104 to 158 °F (-40 to 70 °C) |
| Storage Humidity | 0% to 95% RH non-condensing |
| Dimensions | 5.5 x 3.3 x 1.1 inches (140 x 85 x 28 mm) |
| Certifications | FCC Class B ICES-003 Class B cUL |
