GENERAL SPECIFICATIONS
PRODUCT NAME

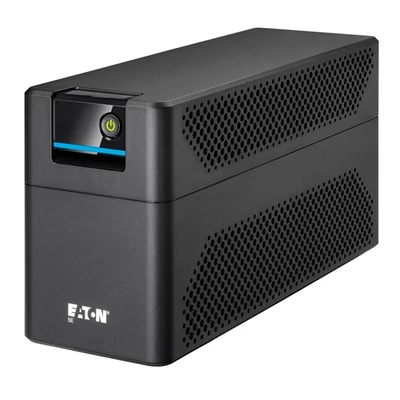

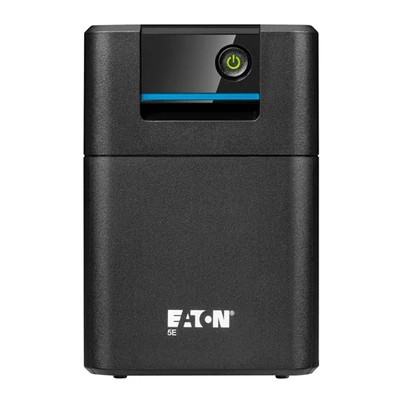

Eaton 5E Gen2 UPS
CATALOG NUMBER
5E550I
PRODUCT LENGTH/DEPTH
288 mm
PRODUCT HEIGHT
148 mm
PRODUCT WIDTH
100 mm
PRODUCT WEIGHT
3.75 kg
WARRANTY
2 year
COMPLIANCES
CB
LVD Directive
EMC Directive
RoHS Directive
Packaging Directive
WEEE Directive
Batteries Directive
CERTIFICATIONS
IEC/EN 62040-1
IEC/EN 62040-2
CE
EAC
UKCA
Cm
Ukr
IEC/EN 62040-3
TERMÉKJELLEMZŐK
SECONDARY FREQUENCY - MAX
60 Hz
WATTAGE
300W
FORM FACTOR
Tower
INCLUDES NETWORK CARD
No
INPUT CONNECTION
C14
INPUT VOLTAGE - MIN
140 V
OUTPUT VOLTAGE - MAX
257 V
SECONDARY FREQUENCY - MIN
50 Hz
BATTERY TYPE
Sealed, lead-acid
EFFICIENCY
95
SPECIAL FEATURES
Automatic Voltage Regulation (AVR)
Saves space with a compact tower design
CONSTRUCTION TYPE
Free standing model
OUTPUT VOLTAGE - MIN
195 V
COLOR
Black
EXTENDED BATTERY CAPABILITY
No
OUTPUT VOLTAGE RANGE
195-257 V
TOPOLOGY
Line-interactive
SURGE PROTECTION
Yes
INPUT NOMINAL VOLTAGE
230V default (220/230/240V)
INPUT FREQUENCY RANGE
45-63 Hz
INTERNAL BYPASS
No
INPUT VOLTAGE - MAX
300 V
VOLTAGE TYPE
AC
PHASE (OUTPUT)
1
BATTERY MANAGEMENT
Automatic battery test, deep-discharge protection, cold-start capable
AUTO SHUTDOWN FUNCTION
No
NUMBER OF OUTPUTS C13
4
OPERATING TEMPERATURE - MIN
0 °C
VA RATING
550 VA
POTENTIAL FREE SWITCH CONTACT
No

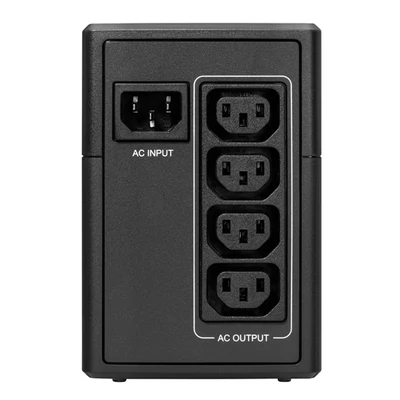

RECEPTACLE
(4) C13
PHASE (INPUT)
1
PACKAGE CONTENTS
(2) IEC-IEC output cables
Quick start
Safety instructions
FEED TYPE
1
RUNTIME GRAPH
View runtime graph
USER INTERFACE
LEDs
BATTERY QUANTITY
1
OPERATING TEMPERATURE - MAX
40 °C
VOLTAGE
230V
HOT SWAP POWER
No
TEMPERATURE RANGE
0° to 40°C (32° to 104°F)
ETHERNET INTERFACE
No
RELATIVE HUMIDITY
0-90% non-condensing
OUTPUT APPARENT POWER
550 VA
RACK MOUNTING KIT
No
OUTPUT FREQUENCY
50/60 Hz
TYPE OF INTERFACE
None
PRIMARY FREQUENCY - MIN
45 Hz
BATTERY RATING
12 V / 4.5 Ah
TYPE
UPS
OUTPUT NOMINAL VOLTAGE
230V
EXPANSION SLOTS
No
INPUT VOLTAGE RANGE
140-300 V
NOMINAL FREQUENCY
50/60 Hz
PRIMARY FREQUENCY - MAX
63 Hz
