Leírás és Paraméterek
| First supported version | V600R024C00 |
| Installation Type | Wall,Ceiling,T-Rail |
| Dimensions without packaging (H x W x D) [mm(in.)] | Diameter x depth: 220 mm x 45 mm (8.66 in. x 1.77 in.) |
| Dimensions with packaging (H x W x D) [mm(in.)] | 72 mm x 260 mm x 255 mm (2.83 in. x 10.24 in. x 10.04 in.) |
| Weight without packaging [kg(lb)] | 0.745 kg (1.64 lb) |
| Weight with packaging [kg(lb)] | 1.230 kg (2.71 lb) |
| CPU | 4-core, 1.0 GHz |
| Memory | DDR4 512 MB |
| Console port | Bluetooth console |
| Power supply mode | PoE,DC power adapter |
| Storage | NAND Flash 512 MB |
| Rated input voltage [V] | 12 V |
| Input voltage range [V] | DC: 12 V ± 10% PoE: 802.3at/af |
| Service port surge protection | PoE port: Differential mode (48 V-RTN): 0.5 kV (1.2/50 us, 42 ohms), criterion B Common mode (8 wires to ground): 4 kV (1.2/50 us, 42 ohms), criterion B |

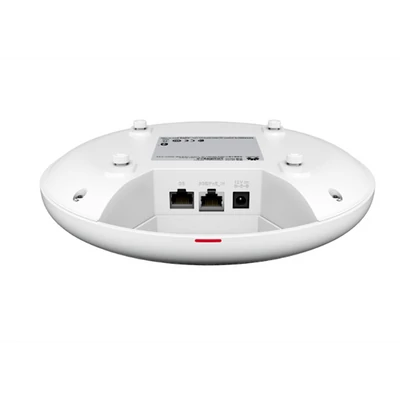

| Maximum number of physical ports on the entire device | 5GE (RJ45) x 1, 100M/1000M/2500M/5000M auto-sensing GE (RJ45) x 1, 10M/100M/1000M auto-sensing |
| Long-term operating temperature [°C(°F)] | –10°C to +50°C (14°F to 122°F) (From 1800 m to 5000 m [5905.51 ft. to 16404.20 ft.], the maximum temperature of the device decreases by 1°C [1.8°F] for every 300 m [984.25 ft.] increase in altitude.) |
| Storage temperature [°C(°F)] | –40°C to +70°C (–40°F to +158°F) |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH (non-condensing) |
| Long-term operating altitude [m(ft.)] | –60 m to +5000 m (–196.85 ft to +16404.20 ft) |
| Atmospheric pressure [kPa] | 53kPa - 106kPa ETSI 300 019-2-3 |
| Ground | Floating ground |
| USB | USB 3.0 is unavailable currently and will be supported through software upgrade in the future. |
| BLE | BLE5.2 |
| Radio number | 3 |
| MIMO spatial streams | Radio 0 (2.4 GHz): 2x2 Radio 1 (5 GHz): 2x2 Radio 2 (6 GHz): 4x4 |
| Wi-Fi standard | 2.4 GHz: 802.11b/g/n/ax/be 5 GHz: 802.11a/n/ac/ac Wave 2/ax/be 6 GHz: 802.11a/ax/be |
| Radio interface | Built-in smart antennas |
| Antenna gain | 2.4 GHz: 4 dBi/chain (peak gain) 2 dBi (combined gain) 5 GHz: 5 dBi/chain (peak gain) 3 dBi (combined gain) 6 GHz: 5 dBi/chain (peak gain) 3 dBi (combined gain) BT: 4 dBi |
| Maximum transmit power | 2.4 GHz: 20 dBm/chain 23 dBm (combined power) 5 GHz (2x2): 20 dBm/chain 23 dBm (combined power) 6 GHz (4x4): 20 dBm/chain 26 dBm (combined power) BLE: < 10 dBm |
| 3G/LTE filte (ACC) | Supported |
| MTBF [year] | 110.878 |
| MTTR [hour] | 2 |
| Maximum power consumption [W] | 21.1 W (excluding USB) |
| Maximum heat dissipation [BTU/hour] | 66 |
| 802.3bt power supply description | The power supply mode is negotiated to 802.3at. When the 5 W USB port is used, the maximum transmit power of radios 0, 1, and 2 decreases by 3 dBm. Other functions are not restricted. |
| 802.3at power supply description | The power supply mode is negotiated to 802.3at. When the 5 W USB port is used, the maximum transmit power of radios 0, 1, and 2 decreases by 3 dBm. Other functions are not restricted. |
| 802.3af power supply description | The power supply mode is negotiated to 802.3af. Wi-Fi service: A maximum of 2.4 GHz (2x2) + 5 GHz (2x2) is supported. The USB is unavailable. Other functions are not restricted. |
| DC power supply description | No function is limited. |
| Operating frequency band | 2.4GHz,5GHz,6GHz |
| Frequency stability [ppm] | +/-20 |
