Leírás és Paraméterek
- Dimensions
-
3.92 × 3.86 × 0.99 in
- Interfaces
-
5× 10/100/1000Mbps Ports, Auto-Negotiation, Auto MDI/MDIX
- External Power Supply
-
5V/0.6A
- Installation
-
Desktop
Wall Mount
- Standards and Protocols
-
IEEE 802.3, IEEE 802.3u, IEEE 802.3x CSMA/CD
- Data Rates
-
10/100/1000 Mbps at Half Duplex
20/200/2000 Mbps at Full Duplex - Buffer Capacity
-
1 Mbit
- Jumbo Frame
-
9 KB
- LED
-
Ethernet Ports (1, 2, 3, 4, 5), Power
- Hardware
- Transfer Method
-
Store and Forward
- Management
-
Plug and Play
- Advanced Features
-
802.3x Flow Control
802.1P/DSCP QoS
IGMP Snooping V1/V2/V3
Green Ethernet
- Software
- Package Contents
-

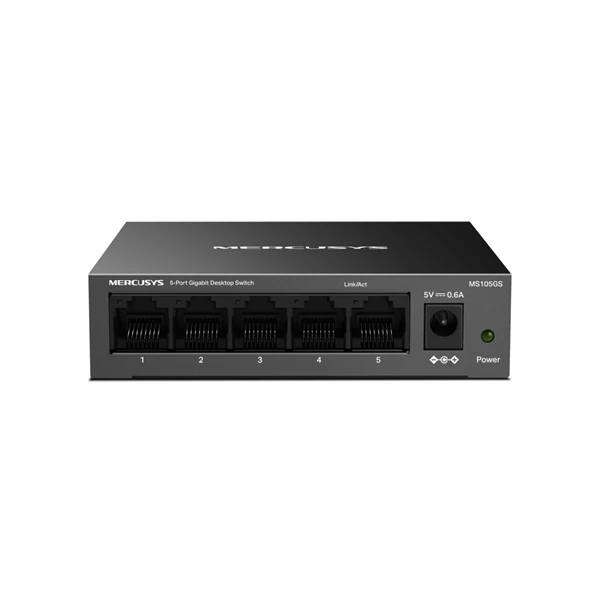

• 5-Port Gigabit Desktop Switch (MS105GS)
• Power Adapter
• Quick Installation Guide - Environment
-
0°?~40°? (32°F~104°F)/10% ~ 90% RH, Non-Condensing
- Others
