Leírás és Paraméterek
- Wireless Standards
-
IEEE 802.11 a/ac/ax 5 GHz
IEEE 802.11 b/g/n/ax 2.4 GHz - WiFi Speeds
-
2402 Mbps on 6 GHz
2402 Mbps on 5 GHz
574 Mbps on 2.4 GHz - Reception Sensitivity
-
6 GHz:
11ax HE160 MCS0:-86 dBm
11ax HE160 MCS11:-56 dBm5 GHz:
11ax HE80 MCS0: -90 dBm
11ax HE80 MCS11: -59 dBm
11a 54Mbps: -77 dBm
11ac VHT80 MCS0: -92dBm
11ac VHT80 MCS9: -64dBm2.4 GHz:
11ax HE40 MCS0: -91 dBm
11ax HE40 MCS11: -60 dBm
11g 54Mbps: -76 dBm
11n HT40 MCS7: -72dBm - Wireless Security
-
WPA-PSK/WPA2-PSK/WPA3-SAE
- Wireless
- Dimensions
-
8.9 × 4.8 × 0.85 in (226.3 × 120.8 × 21.5 mm)
- Antenna Type
-
2× Fixed High-Performance Omni-Directional Antennas
- Hardware
- Package Contents
-

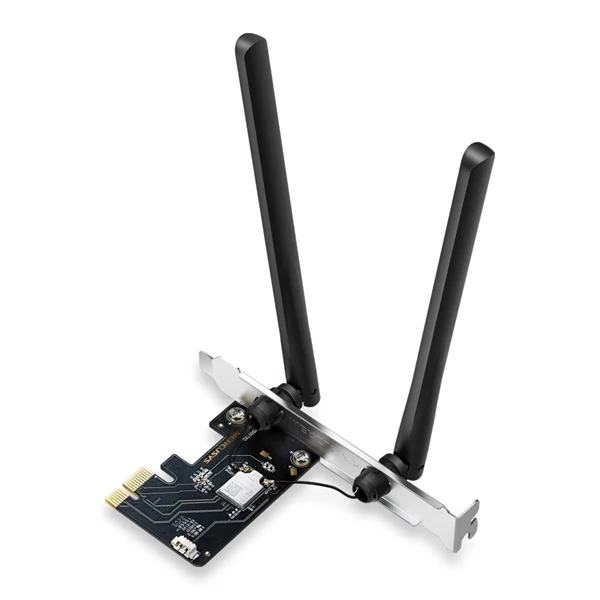

AXE5400 Wi-Fi 6E Bluetooth 5.2 PCIe Adapter (MA86XE)
Bluetooth Header Cable
Quick Installation Guide
Resource CD - Environment
-
Operating Temperature: 0°C~40°C (32°F~104°F)
Operating Humidity: 10%~90% Non-Condensing
Storage Humidity: 5%~90% Non-Condensing - System Requirements
-
Supported operating systems include Windows 10, 11(64-bit)
- Others
