Leírás és Paraméterek
- Wireless Standards
Compatible with 802.11ax/ac/a/b/g/n Wi-Fi standards
- WiFi Speeds
2402 Mbps (5 GHz) + 574 Mbps (2.4 GHz)
- Reception Sensitivity
11g 6Mbps: -97dBm
11g 54Mbps: -79dBm
11n HT40 MCS7:-74dBm
11n HT20 MCS7:-77dBm
11a 6Mbps: -97dBm
11a 54Mbps: -79dBm
11ac VHT20 MCS8:-75dBm
11ac VHT40 MCS9:-71dBm
11ac VHT80 MCS9:-67dBm
11ax VHT20 MCS11:-67dBm
11ax VHT40 MCS11:-64dBm
11ax VHT80 MCS11:-61dBm
- Transmission Power
2.4 GHz < 20dBm (EIRP)
5 GHz < 23dBm (band1? band2)
5 GHz < 30dBm (band3)
- Wireless Security
WEP, WPA / WPA2-Personal, WPA2 / WPA3-Personal
- Wireless Functions
Enable/Disable Wireless Radio, WMM
- Wireless
- WAN Type
Dynamic IP/Static IP/PPPoE/L2TP/PPTP
- Management
Access Control
Local Management
Remote Management
- DHCP
Server, DHCP Client List
- NAT Forwarding
Port Forwarding, Port Triggering, UPnP, DMZ
- Firewall Security
SPI Firewall, IP and MAC Address Binding
- Guest Network
2.4 GHz Guest Network, 5 GHz Guest Network
- VPN Sever
OpenVPN, PPTP supported
- Software
- Dimensions
8.2 × 6.8 × 1.6 in
(208.8 × 171.6 × 41.7 mm)
- Interfaces
1× Gigabit WAN Port + 3× Gigabit LAN Ports
- Button
Reset/WPS Button
- Antenna Type
4× 5 dBi Fixed Omni-Directional Antennas
- Hardware
- Package Contents

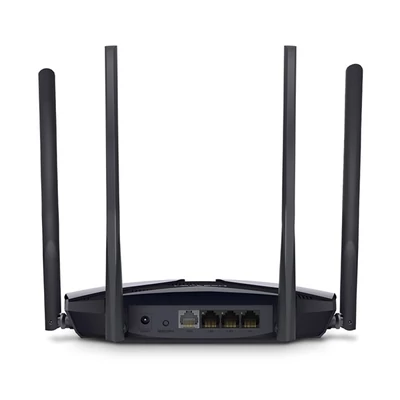

• AX3000 Wi-Fi 6 Router MR80X
• Power Adapter
• Quick Installation Guide
• RJ45 Ethernet Cable
- Environment
• Operating Temperature: 0°C~40°C (32°F~104°F)
• Operating Humidity: 10%~90% Non-Condensing
• Storage Humidity: 5%~90% Non-Condensing
- Others
