Leírás és Paraméterek
- Wi-Fi Class
-
AX3000
- Wi-Fi (2.4 GHz)
-
574Mbps
- Wi-Fi ( 5 GHz)
-
2402Mbps
- Wireless Standards
-
802.11ax/ac/a/b/g/n
- Max Channel Width
-
160MHz
- Reception Sensitivity
-
5G: 11a 6Mbps: -95dBm 11a 54Mbps:-76.5dBm 11n HT20 MCS7:-76dBm 11n HT40 MCS7:-73dBm 11ac VHT20 MCS8:-71.5dBm 11ac VHT40 MCS9:-67dBm 11ac VHT80 MCS9:-63.5dBm 11ax HE20 MCS11:-64.5dBm 11ax HE40 MCS11:-63dBm 11ax HE80 MCS11:-58.5dBm 11ax HE160 MCS11:-56dBm
2.4G: 11g 6Mbps : -97dBm 11g 54Mbps: -79dBm 11n HT20 MCS7:-78dBm 11n HT40 MCS7:-75dBm 11ax HE20 MCS11:-66.5dBm 11ax HE40 MCS11:-65.5dBm
- Max Wi-Fi Modulation
-
1024 QAM
- Wireless Security
-
WPA/WPA2/WPA3
- Wireless Functions
-
Guest Network Smart Connect Wireless Schedule WPS AP Isolation Airtime Fairness
- Wireless
- Dimensions
-
209 × 171.7 × 42.4 mm (8.2 × 6.8 × 1.7 in)

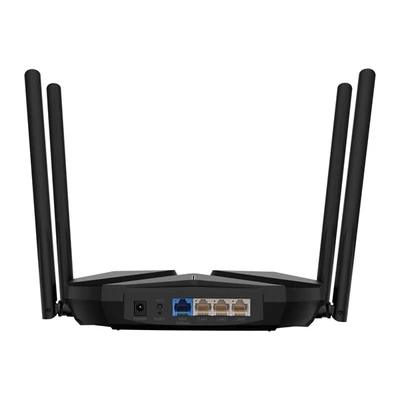

- Interfaces
-
1× 2.5G WAN 3× GE LAN
- Antenna
-
2× 5G External Antennas(5dBi) 1× 2.4G & 5G External Antenna(2.4G: 3dBi, 5G:5dBi) 1× 2.4G External Antenna(5dBi)
- Button
-
1× WPS Button 1× Reset Button
- Installation
-
Desktop Wall-mount
- LED
-
1× SYS
- Retail Package Dimension
-
359 × 274 × 60mm
- Units per Carton
-
10
- Carton Dimension
-
560 × 370 × 310mm
- IPTV
-
IGMP Proxy IGMP Snooping Bridge Tag VLAN
- Power
-
Input:100~240V, 50/60Hz Output: 12V/1.5A
- Hardware
- Operation Mode
-
Router/AP mode
- WAN Mode
-
Dynamic IP Static IP PPPoE PPTP L2TP
- NAT Forwarding
-
Port Forwarding Port Triggering DMZ UPnP
- Protocols
-
IPv4 IPv6
- Guest Network
-
2.4G Guest Network 5G Guest Network
- Parental Controls
-
Profile Settings Time Control Pause the Internet Website Filtering
- DHCP
-
Address Reservation DHCP Client List Server
- DDNS
-
MERCUSYS NO-IP DynDNS
- VPN Server
-
OpenVPN PPTP L2TP/IPSec WireGuard
- VPN Client
-
OpenVPN PPTP L2TP/IPSec WireGuard
- Easymesh
-
Easymesh Compatible
- QoS
-
Time Settings Priority Control
- Security
-
SPI Firewall Access Control IP & MAC Binding
- Kill Switch
-
Support
- ISP Feature
-
CWMP ISP Preset(Agile Config) Superadmin
- System
-
Firmware Upgrade Backup and Restore Administration System Log Time & Language Settings Reboot
- Diagnostics
-
Ping Traceroute
- LED Management
-
LED Control Night Mode
- Device Management
-
MERCUSYS APP Webpage
- Cloud
-
MERCUSYS ID
- Language
-
Bulgarian Czech Danish German English Spanish Finnish French Hungarian Italian Japanese Korean Dutch Norwegian Polish Portuguese Portuguese - Brazil Romanian Russian Slovak Swedish Turkish Ukrainian Vietnamese Chinese - Taiwan
- Advanced Features
-
OFDMA MU-MIMO BSS Color Beamforming
- Software
- Network Services Enabled by Default
- Web Server Manage and configure device through web (HTTP/HTTPS) • Port: 80/443 Protocol: TCP
DNS DNS • Port: 53 Protocol: TCP & UDP
DHCP Server IP address assignment (DHCP) • Port: 67 Protocol: UDP
App management Manage and configure device through app • Port: 20001 Protocol: TCP • Port: 30001 Protocol: TCP • Port: 20002 Protocol: UDP - Network Services Enabled by Default
-
Web Server
Manage and configure device through web (HTTP/HTTPS)
• Port: 80/443; Protocol: TCP
DHCP Server
IP address assignment (DHCP)
• Port: 67; Protocol: UDP
DNS
DNS
• Port: 53; Protocol: TCP & UDP
App management
Manage and configure device through app
• Port: 20001; Protocol: TCP
• Port: 20002; Protocol: UDP
- Package Contents
-
• AX3000 Wi-Fi 6 Router MR85X • Power Adapter • Quick Installation Guide • RJ45 Ethernet Cable
- Environment
-
• Operating Temperature: 0°C~40°C (32°F~104°F) • Operating Humidity: 10%~90% Non-Condensing • Storage Humidity: 5%~90% Non-Condensing
- Others
