Leírás és Paraméterek
- Wireless Standards
IEEE 802.11 b/g/n
- Frequency
2.4-2.5 GHz
- WiFi Speeds
• 11n: Up to 300Mbps (Dynamic)
• 11g: Up to 54Mbps (Dynamic)
• 11b: Up to 11Mbps (Dynamic)
- Reception Sensitivity
• 270M: -70dBm@10% PER • 11M: -87dBm@10% PER
• 130M: -72dBm@10% PER • 6 M: -92dBm@10% PER
• 54M: -74dBm@10% PER • 1 M: -94dBm@10% PER
- Transmission Power
<20dBm (EIRP)
- Wireless Security
WPA-PSK/WPA2-PSK
- Wireless Functions
Enable/Disable Wireless Radio, WDS Bridging
- Wireless
- WAN Type
Dynamic IP/Static IP/PPPoE/PPTP/L2TP
- Management
Access Control
Local Management
Remote Management
- DHCP
DHCP Server, DHCP Client List
- Port Forwarding
Virtual Server, UPnP, DMZ
- Firewall Security
IP and MAC Address Binding
- Guest Network
2.4GHz Guest Network
- Software
- Dimensions
5.8 × 4.5 × 1.3 in (147 × 115 × 34 mm)
- Button
RESET/WPS Button
- External Power Supply
5V/0.6A
- Antenna Type
3* Fixed Antennas
- Ethernet Ports
1* 10/100Mbps WAN Port,
3* 10/100Mbps LAN Ports
- Hardware
- Package Contents

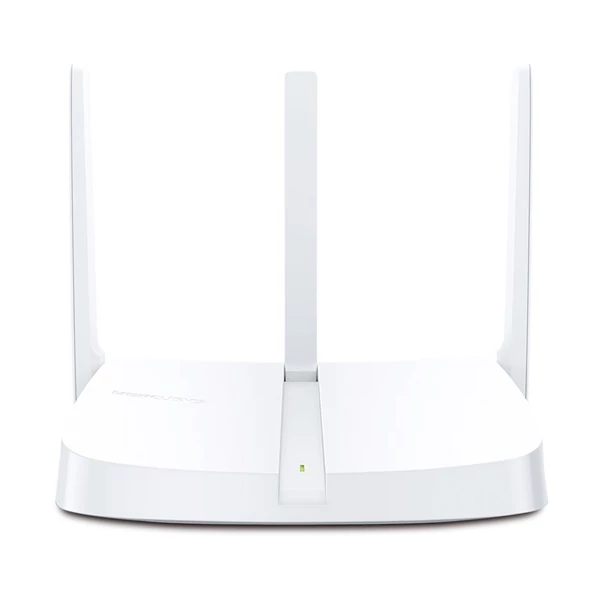

Wi-Fi N Router (MW306R)
Power Adapter
Quick Installation Guide
Ethernet Cable
- Environment
• Operating Temperature: 0°C~40°C (32°F~104°F)
• Operating Humidity: 10%~90% Non-Condensing
- Others
