System specifications
IP networking
Supports IPv4/IPv6 dual stack (NDP IPv6)
DHCP Client/server
Virtual Private Network (VPN) pass-through
Supports NAT/NAPT
Supports DMZ
Multiple APNs
Supports port forwarding
Routing
Supports bridge and router modes
Supports remote management under bridge mode
Static/dynamic route setting
IP firewall
DoS attack detection
Supports SPI
Application-level firewall (LAN to WAN such as FTP, HTTP, Telnet, Ping)
Filters LAN MAC address
Filters LAN IP address
Management
Supports local/remote device management and firmware upgrade via TR-069 and web GUI
PIN/PUK management
APN management
Operating frequency band selection
CLI/SSH (local and remote SSH access)
Supports UPnP IGD
Supports web server API to support APPs
Supports Zyxel Nebula app (iOS and Android) for easy installation and local management
WLAN feature
Auto channel selection
WiFi Protected Setup (WPS)
WiFi Multimedia (WMM)
WiFi-enabled devices: up to 64
Security: none, WPA2-Personal, WPA/WPA2, WPA3
MAC address filtering with 64 address supported
Multiple SSIDs/hide SSIDs
WLAN scheduling
Hardware specifications
5G NR interface
3GPP Release 15 standard-compliant
Supports DL 4×4 MIMO: n1/n3/n7/n38/n40/n41/n77/n78
Supports DL modulation QPSK, 16-QAM, 64-QAM, and 256-QAM
Supports UL modulation QPSK, 16-QAM, 64-QAM, and 256-QAM
Supports both NSA and SA modes
FDD: n1/n3/n5/n7/n8/n20/n28/n77/n78
TDD: n38/n40/n41
Data rates:
5G SA: DL 4.7 Gbps; UL 2.5 Gbps*
5G NSA: DL 3.7 Gbps; UL 1.5 Gbps*
Output power:
Class 2 (26 dBm) for 5G NR n41/n77/n78
Class 3 (23 dBm) for rest FDD/TDD NR bands
4G LTE interface
3GPP UE Category 19 standard-compliant
Supports DL 4×4 MIMO: B1/B3/B7/B38/B40/B41/B42/B43
Supports DL modulation QPSK, 16-QAM, 64-QAM, and 256-QAM
Supports UL modulation QPSK, 16-QAM, 64-QAM, and 256-QAM
Supports frequencies:
LTE-FDD: B1/B3/B5/B7/B8/B20/B28/B32
LTE-TDD: B38/B40/B41/B42/B43
Peak data rates:
Max. DL 1.6 Gbps/UL 211 Mbps*
Output power:
Class 3 (23 dBm ±2 dBm) for rest FDD/TDD LTE bands
WiFi air Interface
Wireless standard: IEEE 802.11b/g/n/a/ac/ax
Wireless speeds:
Link rates up to 1,774 Mbps* for 802.11ax DBDC
Internal WiFi antenna:
Dual-band & concurrent 2x2 + 2x2
WiFi antenna gain:
≤ 4 dBi for 2.4 GHz
≤ 5 dBi for 5 GHz
5G/4G antennas
Two TS9 connectors for external antennas**
Four embedded omni-directional antennas
Antenna Spec (Peak Gain)
700 MHz ~ 960 MHz: 2 dBi
1.4 GHz ~ 2.7 GHz: 5 dBi
3.3 GHz ~ 4.2 GHz: 5 dBi

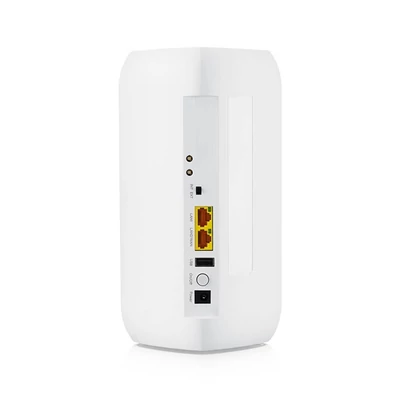

Hardware interface
Two 100/1000 Mbps Ethernet RJ-45 LAN ports, LAN2 can be configured for Ethernet WAN port
Two external antenna connectors (TS9 type)
One 3FF/Micro SIM card slot
One power on/off button
One WPS/WiFi on/off button
One reset button
One Int/Ext antenna switch
One USB 2.0 host port for file sharing
LED indicators:
Power indication
Signal strength
Internet connection status
WiFi AP status
WPS status
Power consumption
24 W (peak)
Physical specifications
Item
Dimensions (WxDxH)
103 x 103 x 222 mm (4.06” x 4.06” x 8.74”)
Weight
1145 g (2.53 lb.)
Packing
Dimensions (WxDxH)
252 x 171 x 110 mm (9.92” x 6.73” x 4.33”)
Weight
2450 g (5.40 lb.)
Environmental specifications
Operating
Temperature
-10°C to 40°C (14°F to 104°F)
Humidity
10% to 90% RH (non-condensing)
Storage
Temperature
-30°C to 70°C (-22°F to 158°F)
Humidity
0% to 95% (non-condensing)
Certifications
CE
NCC
BSMI
NBTC Certification
Package contents
Power adapter
Ethernet cable 1.8 m 8P8C
All specifications are subject to change without notice.
- * The maximum data rates is a theoretical value. The actual data rates depend on the network environment.
- ** The TS9 connectors support 698 ~ 4200 MHz frequency.
