Leírás és Paraméterek
- IEEE 802.3 10BASE-T Ethernet
- IEEE 802.3u 100BASE-TX Fast Ethernet
- IEEE 802.3ab 1000BASE-T Gigabit Ethernet
- IEEE 802.3 Nway auto-negotiation
- IEEE 802.3x full duplex operation and flow control
- IEEE 802.3az Energy Efficient Ethernet
Performance
- Data transfer rate (half duplex/full duplex):
- Ethernet: 10/20 Mbps
- Fast Ethernet: 100/200 Mbps
- Gigabit Ethernet: 1000/2000 Mbps
- MAC address table: 2 K
- Memory buffer: 128 KB
- Switching fabric (non-blocking): 10 Gbps
Features
- Compatible With IEEE 802.3af and 802.at Compliant PDs
- Auto-MDI/MDIX in all ports
- EEE802.3x Flow Control
- IEEE 802.1p QoS
- Jumbo frame support up to 9 KB
Interface
- 5 RJ-45 10/100/1000 Mbps Ethernet ports with auto MDI/MDIX support
PoE Ports (RJ45)
- Standard: 802.3af and 802.3at compliant
- 4 PoE+ ports(Port1- Port4), up to 30W per port
- Total PoE Budget : 60W

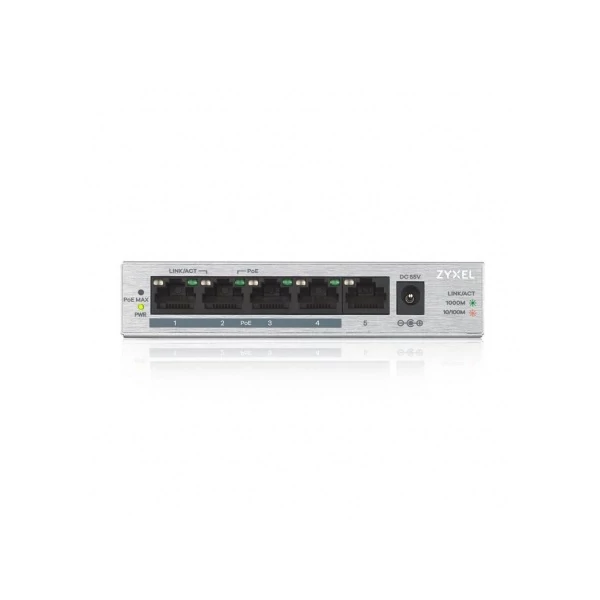

LED Indicator
- PWR: Power
- PoE MAX:
- Amber: PoE power output over 50W (total budget 60W)
- Per port: Link/Activity
- Amber: 10/100 Mbps
- Green: 1000 Mbps
- Port1- Port4: PoE+
- Green: PoE supported
Power Supply
- AC-to-DC external power adapter
- Input: 100-240 V AC
- Output: 55V DC/1.3A
