Models
|
|
|

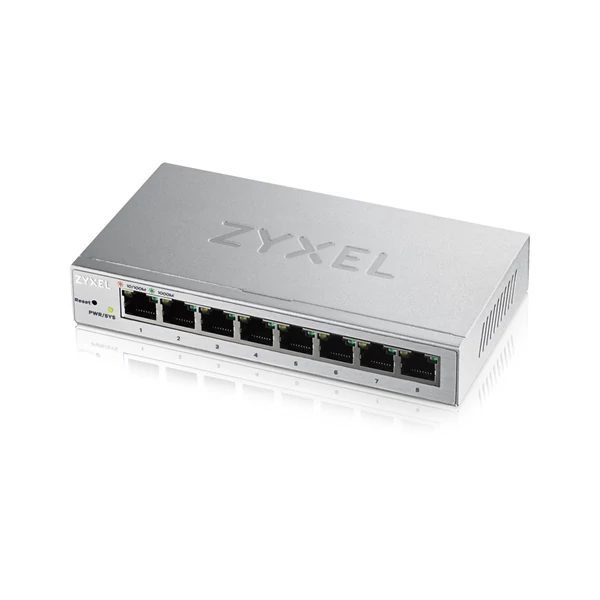

GS1200-8
|
|
| Description | 8-Port Web Managed Gigabit Switch |
| Case | Metal |
| Key Features | |
| Auto MDI/MDI-X | Yes |
| Store and Forward | Yes |
| Full Duplex Capability | Yes |
| Flow Control | Yes |
| Hardware | |
| 10/100 Mbps Ethernet Ports | - |
| 10/100/1000 Mbps Ethernet Ports | 8 |
| 10/100/1000 Mbps Ethernet PoE+ Ports | - |
| Performance | |
| Switching Capacity | 16 Gbps |
| MAC Address | 4K |
| Memory Buffer | 192 KB |
| Jumbo Frames | Up to 9 KB |
| System Features | |
| Web GUI | Yes |
| 802.3x Flow Control | Yes |
| DHCP Client | Yes |
| 802.1Q VLAN | Yes |
| WRR Priority QoS | Yes |
| Port-based QoS | Yes |
| 802.1p CoS | Yes |
| Broadcast Storm Control | Yes |
| Loop Detection /Prevention | Yes |
| IGMP Snooping v1/v2/and v3 Compatitble | Yes |
| Link Aggregation | Yes |
| Port Mirroring | Yes |
| Green Features | |
| Fanless | Yes |
| Power Saving by Detecting Link Status & Cable Length | Yes |
| Power | |
| Input voltage | 5V DC/1A |
| Power supply | External |
| Maximum power consumption (watt) | 4.37 |
| PoE power budget (watt) | - |
| Physical Specifications | |
| Item dimensions (WxDxH) | 155x 85 x 26 mm |
| (6.1” x 3.0” x 1.0”) | |
| Item weight | 325g (0.72 lb.) |
| Packing dimensions (WxDxH) | 161 x 90 x 95 mm |
| (6.3” x 3.5” x3.7”) | |
| Packing weight | 497g (1.10 lb.) |
| Environmental Specifications | |
| Operating | Temperature |
| 0°C to 40°C/32°F to 104°F | |
| Humidity | |
| 10% to 90% (non-condensing) | |
| Storage | Temperature |
| -40°C to 70°C/-40°F to 158°F | |
| Humidity | |
| 10% to 90% (non-condensing) |
