Leírás és Paraméterek
Model

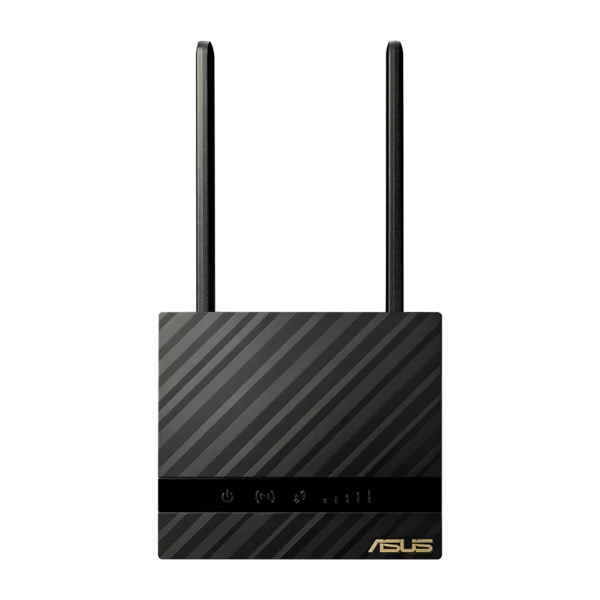

4G-N16
Network Standard
IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
WiFi 4 (802.11n)
Product Segment
N300 complete networking : 300 Mbps
Data Rate
802.11a : up to 54 Mbps
802.11b : up to 11 Mbps
802.11g : up to 54 Mbps
WiFi 4 (802.11n) : up to 300 Mbps
Connectivity Technology
LTE(4G):
EU/APAC LTE: B1(2100MHz); B3 (1800 MHz); B5 (850MHz); B7( 2600 MHz ); B20(800 MHz)with FDD B38( 2600MHz ); B40 (2300MHz); B41 (2500MHz)with TDD
TW LTE : B1(2100MHz); B3 (1800 MHz); B7( 2600 MHz ); B8 (900MHz); B28 (700MHz)with FDD B38( 2600MHz ), B41with TDD
HSPA+(3.5G):
B1(2100MHz);B2(1900MHz)B5(850MHz);B8(900MHz)
LTE:150/50Mbps with FDD mode; 61M/18Mbps with TDD mode
HSPA+:42.2/5.76Mbp
Antenna
2 x Ext. detachable LTE antenna
2 x Int. Wi-Fi antenna
Memory
128MB
Operating Frequency
2.4 GHz, Wi-Fi 11n up to 300Mbps
Ports
1 x LAN Port
1 x SIM SLOT
Button
Power, Reset, WPS,WIFI
LED Indicator
Power, Wi-Fi/WPS, 4G/LTE Internet, Signal Strength
Power Supply
DC output: 12/0.5A
Package content
4G-N16
Adapter
QSG
Warranty Card
RJ45
Product Weight (g)
190g/0.42lb
Traffic Control
Website history
Wireless
Wi-Fi Encryption : WPA2-PSK(AES), WPA/WPA2-PSK(TKIP/AES)
Guest Network
WAN
Port forwarding
DMZ
DDNS
Administration
Operating mode : Router
