Leírás és Paraméterek
Model

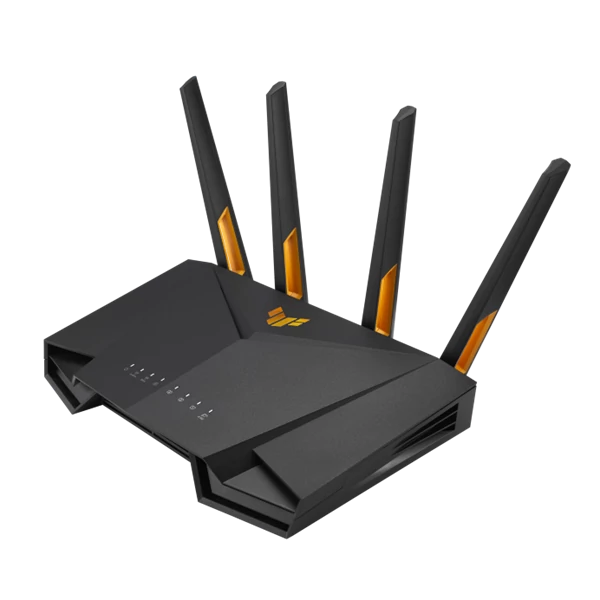

TUF Gaming AX4200
Network Standard
IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
WiFi 4 (802.11n)
WiFi 5 (802.11ac)
WiFi 6 (802.11ax)
IPv4
IPv6
Product Segment
AX4200 ultimate AX performance: 574+3603 Mbps
AX technology
Yes
Data Rate
802.11a : up to 54 Mbps
802.11b : up to 11 Mbps
802.11g : up to 54 Mbps
WiFi 6 (802.11ax) (2.4GHz) : up to 574 Mbps
WiFi 6 (802.11ax) (5GHz) : up to 3603 Mbps
Antenna
External antenna x 4
Transmit/Receive
2.4GHz 2x2
5GHz 3x3
Processor
2.0 GHz quad-core processor
Memory
256 MB Flash
512 MB RAM
Boosts speed
OFDMA (Orthogonal Frequency Division Multiple Access)
Beamforming: standard-based and universal
1024-QAM high data rate
20/40/80/160 MHz bandwidth
Operating Frequency
2.4GHz / 5GHz
Ports
RJ45 for 2.5 Gigabits BaseT for WAN x 1,
RJ45 for Gigabits BaseT for LAN x 4,
USB 3.2 Gen 1 x 1,
Button
WPS Button, Reset Button, Power Button
LED Indicator
Power x 1
2.4G x 1
5G x 1
LAN x 4
WAN x 1
Power Supply
AC Input : 100V~240V (50~60Hz)
DC Output : 12 V with max. 2.5 A current
Package content
TUF Gaming AX4200 Dual Band WiFi 6 router
RJ-45 cable
Power adapter
Quick Start Guide
Warranty card
Product Weight (g)
547.4 g
AiMesh
AiMesh
Primary AiMesh router
AiMesh node
Router APP
ASUS Router APP
Game
Game Boost / Acceleration
AiProtection
AiProtection Pro
AiProtection
Malicious site blocking
Two-Way IPS
Infected Device Prevention and Blocking
Parental Control
Parental Control
Parental Control Customized Internet schedule
Traffic Control
Adaptive QoS
Bandwidth Monitor
Bandwidth limiter
Maximum Bandwidth limiter rule : 32
Traditional QoS
Maximum Traditional QoS rule : 32
Traffic Monitor
Real-time traffic monitor
Wired Traffic Monitor
Wireless Traffic Monitor
Traffic Analyzer
Traffic analysis period : Daily, Weekly, Monthly
Website history
Wireless
IPv6
Wi-Fi Encryption : WPS support, WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise
UTF-8 SSID
Guest Network
Maximum Guest Network rule : 2.4GHz x3, 5GHz x3
Guest Network Connection time limit
WPS
WiFi MAC address filter
Maximum MAC filters : 64
Wireless scheduler
Airtime fairness
RADIUS Client
Universal beamforming
Explicit beamforming
WAN
Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP
3G/4G LTE dongle
Android tethering
Port forwarding
Maximum port forwarding rule : 64
Port triggering
Maximum port triggering rule : 32
DMZ
DDNS
NAT Passthrough : PPTP Pass-Through, L2TP Pass-Through, IPSec Pass-Through, RTSP Pass-Through, H.323 Pass-Through, SIP Pass-Through, PPPoE relay
Safe browsing
DNS-over-TLS
LAN
DHCP Server
IPTV
LAN Link Aggregation
Manually assign IP address
Maximum manually assign IP address rule : 64
VPN
VPN Client L2TP
VPN Client OVPN
VPN Client PPTP
VPN Client WireGuard
VPN Server IPSec
VPN Server OVPN
VPN Server PPTP
VPN Server WireGuard
VPN Fusion
USB application
File System : HFS+, NTFS, vFAT, ext2, ext3, ext4
3G/4G LTE dongle
HDD hibernation
Safely Remove disk
AiCloud
Download master
AiDisk
Media Server
Time Machine
Samba Server
FTP Server
Shared Folder privileges
Administration
Operating mode : Wireless router mode
Access point mode
Media bridge mode
Operating system : ASUSWRT
Free OS upgrade
Firewall
Maximum Firewall keyword filter : 64
Maximum Firewall network service filter : 32
Maximum Firewall URL filter : 64
SSH
Wake on LAN (WOL)
Configuration backup and restore
Diagnosis tools
Feedback system
System log
New Device Connect Notification
Login Captcha
Connection Diagnosis
Security Scan
Auto Firmware Update
