Leírás és Paraméterek
Standard
- IEEE 802.3 10BASE-TX Ethernet
- IEEE 802.3u 100BASE-TX Fast Ethernet
- IEEE802.3ab 1000BASE-T
- IEEE 802.3bz 2500BASE-T Gigabit Ethernet
- SFF-8431
- IEEE 802.3az Energy Efficient Ethernet
- IEEE 802.3x full duplex operation and flow control
Performance
- Switching capacity: 66 Gbps
- Switching forwarding rate: 49 Mpps
- MAC address table: 16 K
- Packet buffer: 1.5 MB
- Jumbo frame support up to 12 KB
Features
- 10M,100M,1G,2.5G and 10G ports for multi speed
- Fanless and quiet
- Plug and Play, Easy use and Quick Install
- Support IEEE 802.3az Energy Efficient
- Desktop and Wall mount
- Auto-MDI/MDIX in all ports
- QoS ports for smooth media streaming, VoIP calls, and online gaming
- Weighted Fair Queuing (WFQ) priority QoS
Interface

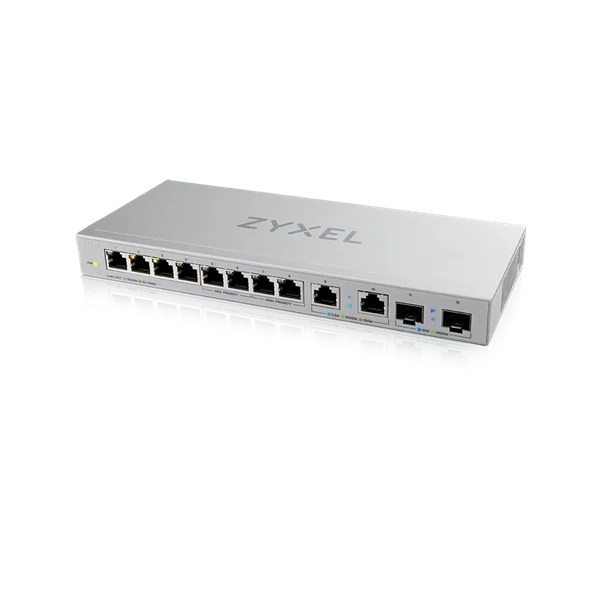

- 8 x RJ-45 10/100/1000 Mbps Ethernet port with metal shielding
- 2 x RJ-45 100/1000/2500 Mbps Ethernet port with metal shielding
- 2 x SFP+
- Hardware reset button
LED Indicator
- PWR: Power
- Port 1~8: Link/Activity
- Green: 1000 Mbps
- Amber: 10/100 Mbps
- Port 9~10: Link/Activity
- Sky Blue : 2.5Gbps
- Green : 1Gbps
- Amber: 100Mbps
- Port 11~12: Link/Activity
- Blue: 10Gbps
- Green : 1000Mbps
Power Supply
- AC-to-DC external power adapter
- Input: 100-240V~50-60Hz
- Output: 12V DC/1.5A
